The Atlas® Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!
The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not desinged for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..
The Atlas® Garage PRO8000EXT-L includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Extra Tall/Extra Long
- Diamond Plated Runways
- Single-Point Lock Release
- Lock Ladder Design

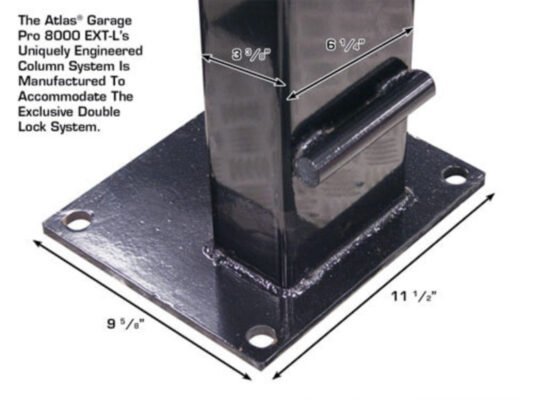

- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included

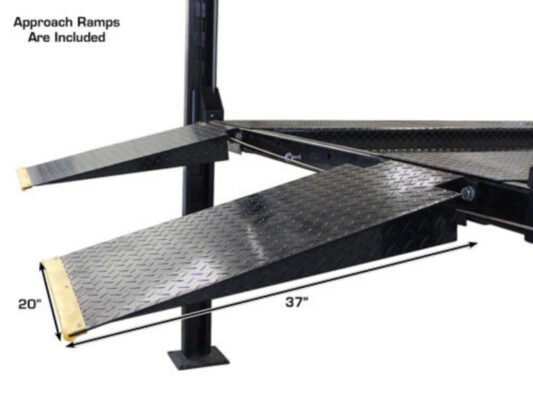

- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 1,900 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

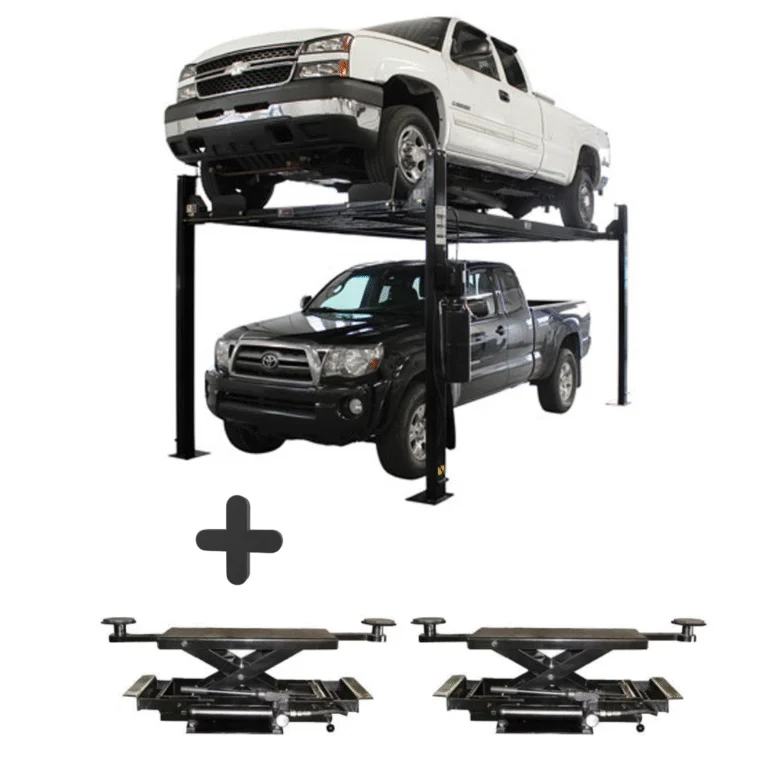

Atlas RJ-35 Hydraulic Sliding Center Jack
3,500 lbs. Capacity with Truck Adapters
The Atlas RJ-35 (3500 lbs. capacity) sliding hydraulic vehicle jack is designed for use on hobbyist lifts with no welded slide on runways. Glide blocks under extension ears allow the jack to be positioned under correct lifting point of vehicle.
The Atlas RJ-35 (3500 lbs. capacity) sliding hydraulic vehicle jack is the perfect choice for the owner of the Atlas Garage Pro 8000. The Atlas RJ-35 Sliding Jack will also fit the Atlas Garage Pro 9000. The Atlas RJ-35 Sliding Jack is for those who want to perform wheel service on a vehicle that is positioned on top of their four post lift.
The complete Atlas Garage Pro 8000 four post lift comes with a jack tray. The jack tray has certain limitations that are eliminated by using the Atlas RJ-35 Sliding Jack. The jack tray (with a small floor jack or jack stands) will support ONLY THOSE LIFTING POINTS of the raised vehicle that are between the runways of the Atlas Garage Pro 8000 four post lift. The Atlas RJ-35 Sliding Jack has telescoping arms that can be extended over the runways of the four post lift. The lift pads at the end of these arms can be positioned under the LIFTING POINTS (that are located over the runways of the four post lift) of the vehicle allowing the operator to access many more LIFTING POINTS than just using the jack tray.
The Atlas RJ-35 Sliding Jack comes standard with a set of peg style truck adapters which increase the lifting height of the lift pads. These truck adapters will allow the Atlas RJ-35 Sliding Jack sliding hydraulic jack to raise pick up trucks that will sit higher on the runways than the average passenger car. The Atlas RJ-35 Sliding Jack is operated by a manual hydraulic pump (porta-power pump) and does not require an air compressor for power. The Atlas RJ-35 Sliding Jack sliding hydraulic jack also features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions of the Atlas RJ-35 Sliding Jack are engaged, the hydraulic pressure from the lifting cylinder of the RJ-35 Sliding Jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).
Finally, the versatile Atlas RJ-35 Sliding Jack is adjustable to fit between the runways of many of the other four post lifts that have been sold in the last several years.
| Atlas® Garage PRO8000EXT-L Specifications | |
| Capacity | 8,000 Lb. |

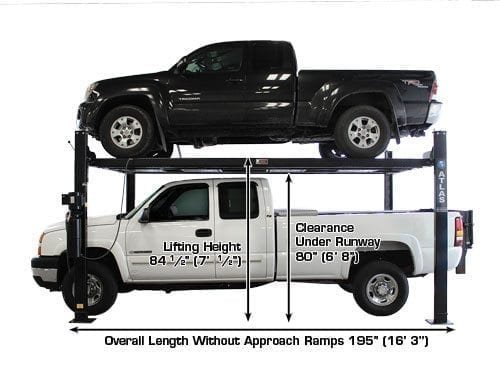

| Lifting Height To Top Of Runway | 84″ (7′) |
| Clearance Under Runways | 78 1/2″ (6′ 6 1/2″) |
| Height Of Columns | 98 1/2″ (8′ 2 1/2″) |
| Overall Width (Without Motor) | 108″ (9’) |

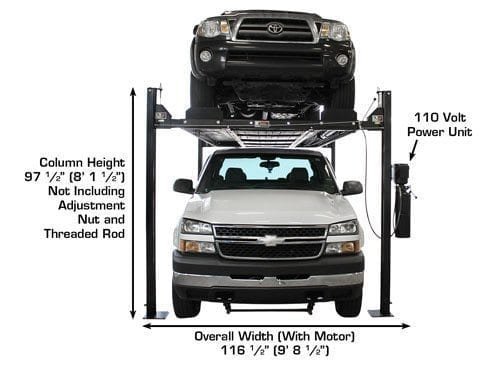

| Overall Width (With Motor) | 116 1/2″ (9′ 8 1/2″) |
| Overall Length With Approach Ramp | 222″ (18’ 6”) |
| Approach Ramp | 37″ (3′ 1″) |

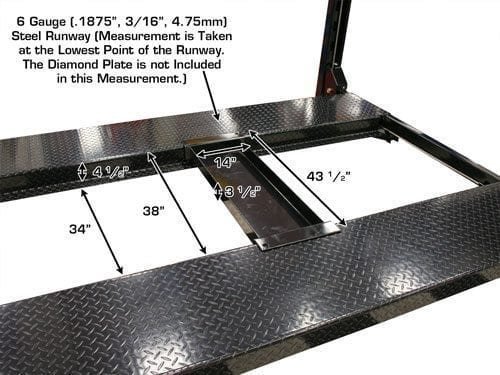

| Runway Width | 22″ (w/ Rails) or 18 3/4″ (Driving Surface) |

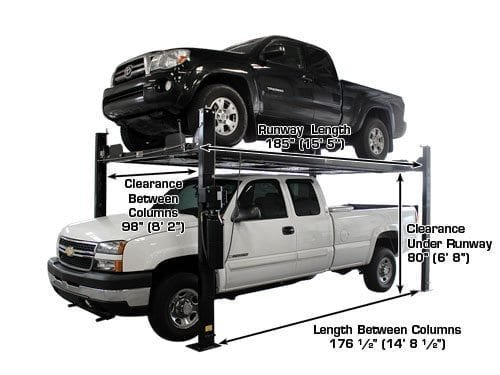

| Runway Length | 185″ (15’ 5”) |
| Runway Thickness | 4 1/2″ |

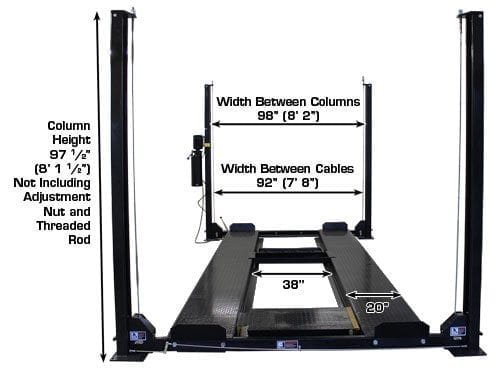

| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 34″ (2’ 10″) |
| Outside Runway To Outside Runway | 77 3/4″ (6′ 5 3/4″) |
| Clearance Between Columns | 98″ (8’ 2″) |

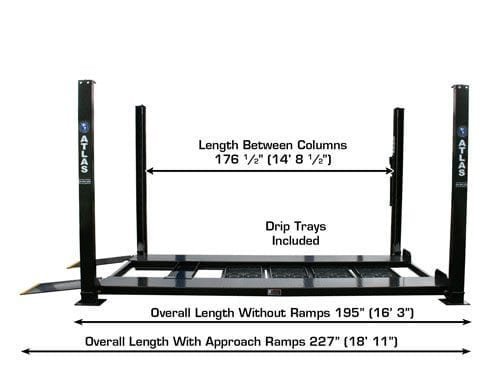

| Length Between Columns | 176 1/2″ (14’ 8 1/2″) |

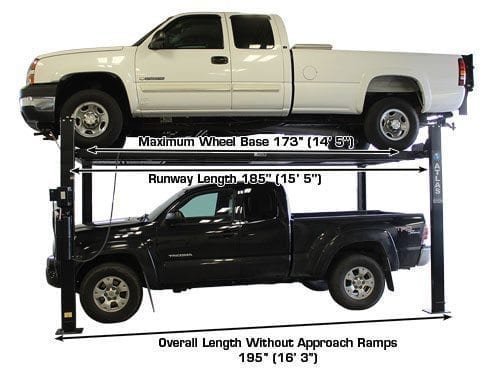

| Maximum Wheel Base | 173″ (14′ 5″) |

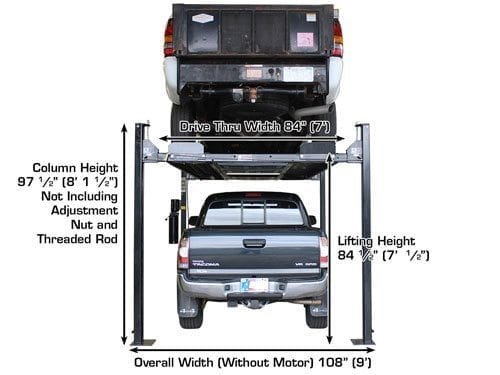

| Drive Thru (Outside Of Tire To Outside Of Tire) | 84″ (7’) |
| Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 1,900 lb. |
