HD-7 Series (5175510) 7,000-lb. Capacity / Four-Post Parking Lift

Original price was: $5,070.00.Current price is: $3,042.00.

The HD-7 Series is a four-post parking lift with a lifting capacity of 7,000 lbs. It is designed for use in automotive workshops and garages for vehicle storage and parking.

SKU: AL-1665 Category:

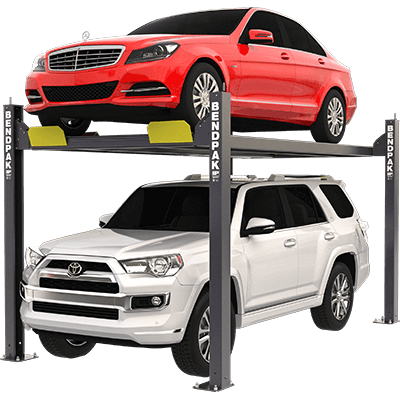

HD-7 Series 7,000-lb. Capacity / Four-Post Parking Lift



The HD-7 Series is a four-post parking lift with a lifting capacity of 7,000 lbs. It is designed for use in automotive workshops and garages for vehicle storage and parking. The lift has a standard platform design, making it ideal for a wide range of vehicles, including cars, trucks, and SUVs. The four-post design provides stability and safety during use, and the 7,000-lb capacity ensures that the lift can handle heavy vehicles. The HD-7 Series operates using a hydraulic system powered by an electric pump, providing quick and efficient lifting capabilities. The lift is durable, reliable, and ideal for use in commercial settings where vehicles need to be parked and stored. With its compact design and vertical storage capabilities, the HD-7 Series is a great space-saving solution for garages and workshops with limited space.

Features & Specs

HD-7 Series (5175510) 7,000-lb. Capacity / Four-Post Parking Lift

  • 7,000-lb. lifting capacity
  • High lift with short runways
  • Electric-hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column

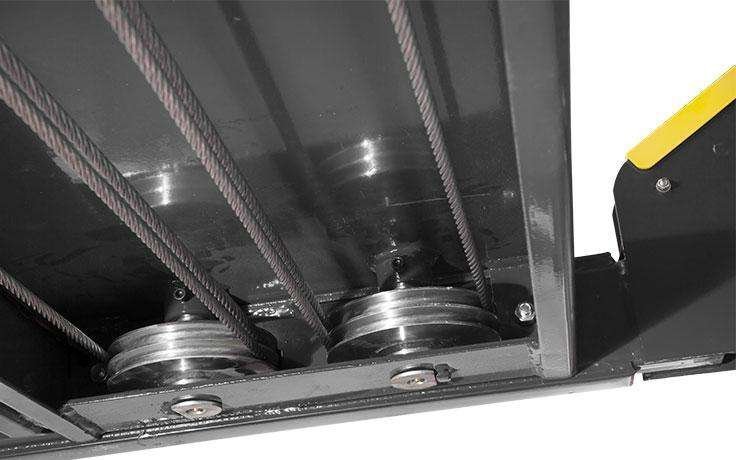

  • Oversized self-lubricating cable rollers
  • High-speed lifting
  • Features heavy-duty 3/8″ aircraft cable
  • Rugged 1.25″ roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders

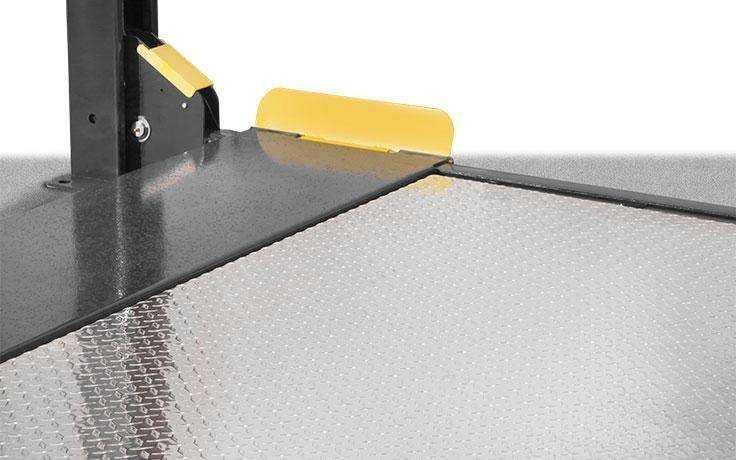

  • Ramps feature non-skid surface
  • Push-button pneumatic safety release
  • Optional 4,500-lb. capacity rolling jack available (Model RBJ4500)

Style

  • Style: Four-Post Parking Lift

Capacity

  • Lifting Capacity: 7 000 lbs. (3 175 kg)
A – Min. Runway Height: 4.5” (114 mm)
B – Max. Rise: 82” (2,083 mm)
C – Max. Lifting Height: 86.5” (2,197 mm)
D – Overall Width: 99.75” (2,534 mm)
E – Outside Length: 174” (4,420 mm)
F – Overall Length: 200” (5,080 mm)
G – Height of Columns: 100” (2,540 mm)
H – Width Between Columns: 89.75” (2,280 mm)
I – Drive-Thru Clearance: 76.5″ (1,943 mm)
J – Runway Width: 19″ (483 mm)
K – Length of Runways: 164″ (4,166 mm)
L – Width Between Runways: 37.5″ (952 mm)
M – Runway Centerline: 56.5″ (1,435 mm)
N – Outside Edge of Runways: 75.5″ (1,918 mm)
Time to Full Rise: 35 seconds
Locking Positions: 15
Lock Spacing: Every 4″ (102 mm)
Motor: 220 VAC / 60 Hz / 1 Ph
Shipping Weight: 1,794-lbs. (814 kg)
Shipping Dimensions: 166” x 22” x 42” (4,203 mm x 558 mm x 1,066 mm)
