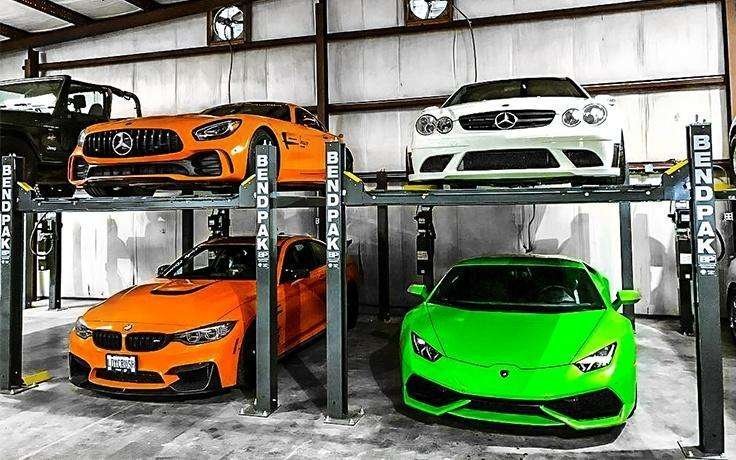

HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 4

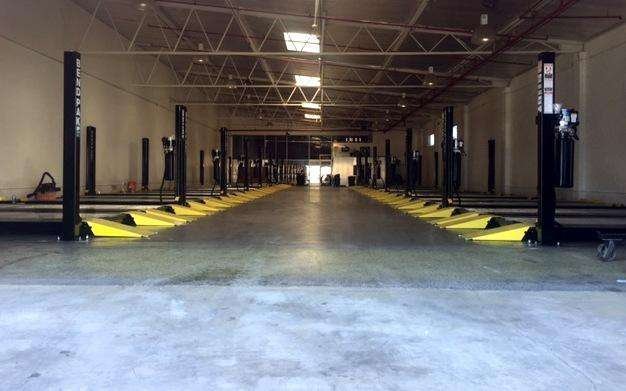

HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 5

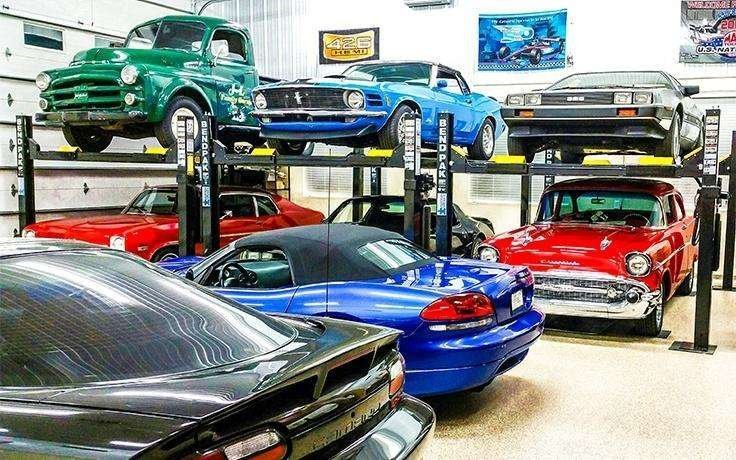

HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 6
HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift
HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 2
HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 3
HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 4
HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 5
HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift - Image 6

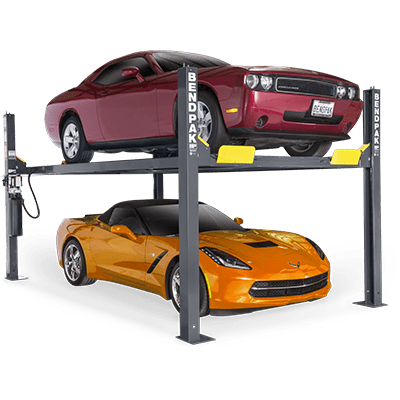

HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift

Original price was: $4,980.00.Current price is: $2,988.00.

The HD-9 Series is a four-post parking lift with a lifting capacity of 9,000 lbs. It is designed for use in automotive workshops and garages for vehicle storage and parking.

SKU: AL-1658 Category:

HD-9 Series 9,000-lb. Capacity / Four-Post Parking Lift



The HD-9 Series is a four-post parking lift with a lifting capacity of 9,000 lbs. It is designed for use in automotive workshops and garages for vehicle storage and parking. The lift has a standard platform design, making it ideal for a wide range of vehicles, including cars, trucks, and SUVs. The four-post design provides stability and safety during use, and the 9,000-lb capacity ensures that the lift can handle heavy vehicles. The HD-9 Series operates using a hydraulic system powered by an electric pump, providing quick and efficient lifting capabilities. The lift is durable, reliable, and ideal for use in commercial settings where vehicles need to be parked and stored. With its compact design and vertical storage capabilities, the HD-9 Series is a great space-saving solution for garages and workshops with limited space.

Features & Specs

HD-9 Series specs diagram

  • 9,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric-hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8″ aircraft cable
  • Rugged 1.25″ roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release

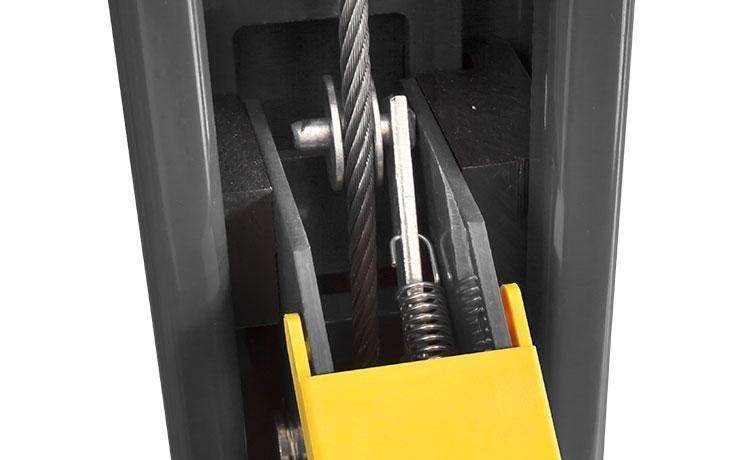

  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available

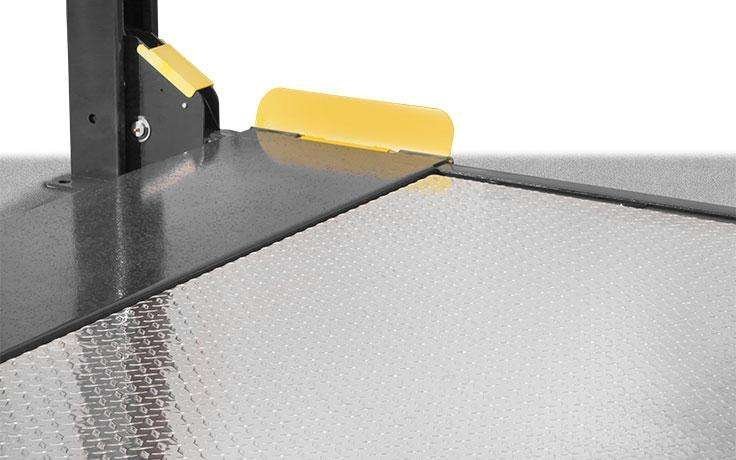

  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air/hydraulic rolling jacks available (Model RBJ4500)
  • ETL Approved

Style

Style: Four-Post Parking Lift

Capacity

Lifting Capacity: 9 000 lbs. (4 082 kg)
A – Min. Runway Height: 4.5″ (114 mm)
B – Max. Rise: 70″ (1,778 mm)
C – Max. Lifting Height: 74.5″ (1,892 mm)
D – Overall Width: 110.25″ (2,800 mm)
E – Outside Length: 174″ (4,420 mm)
F – Overall Length: 200″ (5,080 mm)
G – Height of Columns: 88″ (2,235 mm)
H – Width Between Columns: 100.25″ (2,555 mm)
I – Drive-Thru Clearance: 86.5″ (2,197 mm)
J – Runway Width: 19″ (483 mm)
K – Length of Runways: 164″ (4,166 mm)
L – Width Between Runways: 37.5″ (952 mm) or 44-3/8″ (1,127 mm)
M – Runway Centerline: 56.5″ (1,435 mm) or 63-3/8″ (1,610 mm)
N – Outside Edge of Runways: 75.5″ (1,918 mm) or 82-3/8″ (2,092 mm)
Time to Full Rise: 50 seconds
Locking Positions: 12
Lock Spacing: Every 4″ (102 mm)
Motor: 220 VAC / 60 Hz / 1 Ph
Shipping Weight: 1,746-lbs. (792 kg)
Shipping Dimensions: 165” x 22” x 34” (4,203 mm x 558 mm x 863 mm)
